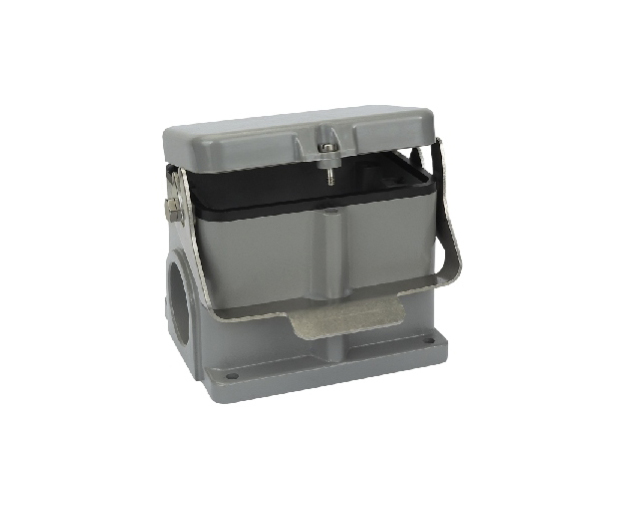

H48B-SDR-LB-2M50
Type：shell-H48B housing (IP65)
Model：H48B-SDR-LB-2M50
Num：1620480250
Part：Lower housing
Introduction：H48B metal shell; surface mounting; common structure; single buckle; with cover; 2 inlet; M50
Download：
H48B-SDR-LB-2M50
Detail
|
material |
Cast aluminum |
|
colour |
gray |
| Interlocking element | |
| ---Interlocking method |
Metal elastic pressing |
| ---material | Stainless steel |
| Sealing element | NBR |
|
Applicable temperature range |
-40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
