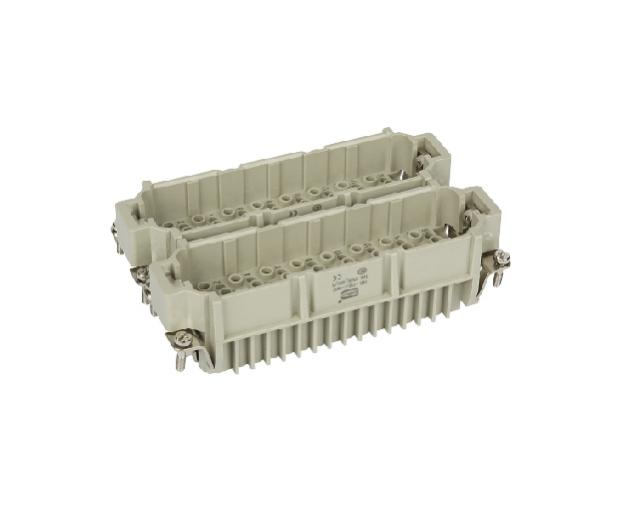

HD-128-MC(1-64)
Type：Inserts-HD core series
Model：HD-128-MC(1-64)
Num：2020644101
Should I order another cold pin?：Y>> 10A Crimp contacts
Part：Ferrule
Introduction：128 core 10A 250V
Download：
HD-128-MC(1-64)
Detail
|
Ferrule |
|
| Connector pin count | 128+PE |
| －Rated current | 10A |
| －Rated voltage | 250V |
| －Rated pulse voltage | 4KV |
| －Degree of pollution | 3 |
| －When the pollution degree is 2 | 10A 230/400V 4KV 2 |
| －According to UL / CSA rated voltage | 600V |
| －Rated voltage according to CSA winding connection | 2A 30V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Range of working temperature | -40℃...+125℃ |
| Flame retardant rating | V0 |
| Number of pluggable | ≥500 |
| Pin | |
| Material | Copper alloy |
| Surface treatment | Silver Gold plating |
|
Contact resistance |
≤3mΩ |
| Cold pressure connection | |
| －Wire specification | 0.14-2.5mm2 |
| －AWG | 26-14 |
