DDF-2.5

larger version

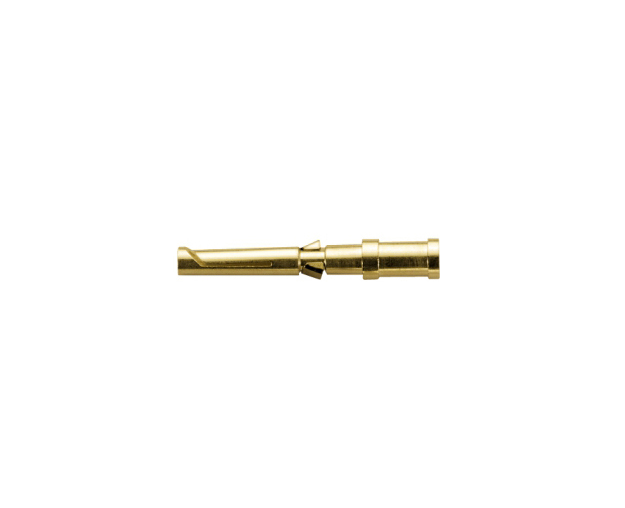

DDF-2.5

Type:Plugin-10A Crimp contacts

Model:DDF-2.5

Num:2020012025

Part:Pin

Introduction:10A cold crimp pin, gold plated for HD, HDD, HM, HK, HQ ferrules

Download:  DDF-2.5

Detail
Technical Parameters
Material Copper alloy
Surface treatment Gold plating
Contact resistance ≤3mΩ
Wire gauge
-mm2 2.5mm2
-AWG 14
Stripping length 6mm
