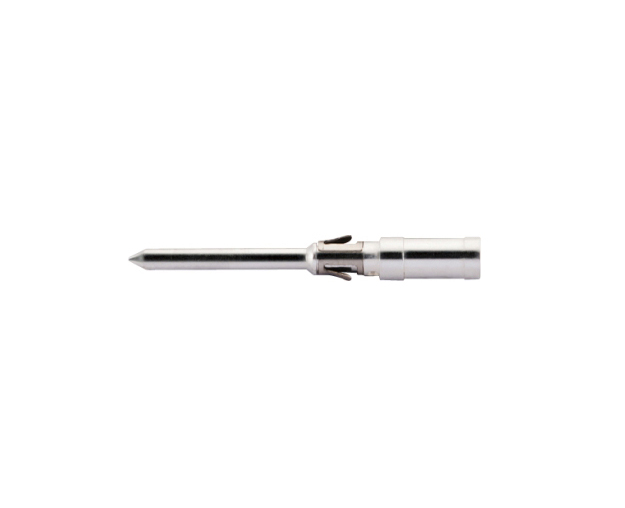

CDM-0.37B
Type：Plugin-10A Crimp contacts
Model：CDM-0.37B
Num：2020101002
Part：Pin
Introduction：10A compression spring cold crimp pin with two-jaw support, silver plated for HD, HDD, HM, HK, HQ ferrules
Download：
CDM-0.37B
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment | Silver |
| Contact resistance | ≤3mΩ |
| Wire gauge | |
| －mm2 | 0.14-0.37mm2 |
| －AWG | 26-22 |
| Stripping length | 8mm |
