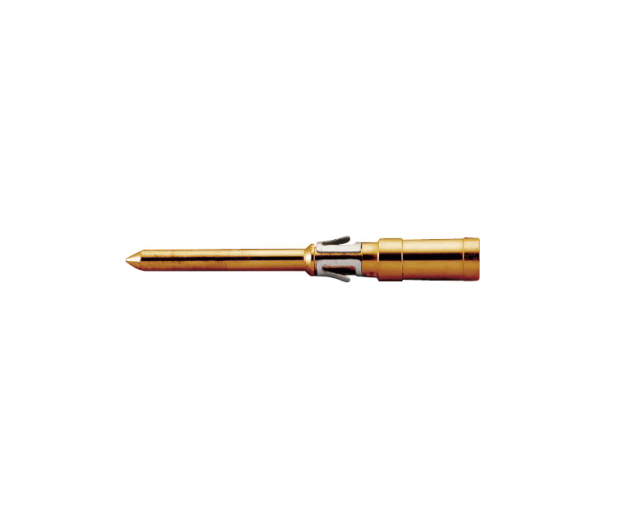

DDM-2.5B
Type：Plugin-10A Crimp contacts
Model：DDM-2.5B
Num：2020111025
Part：Pin
Introduction：10A compression spring cold crimp pin with two-jaw support, gold plated for HD, HDD, HM, HK, HQ ferrules
Download：
DDM-2.5B
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment |
Gold plating |
| Contact resistance | ≤3mΩ |
| Wire gauge | |
| －mm2 | 2.5mm2 |
| －AWG | 14 |
| Stripping length | 6mm |
