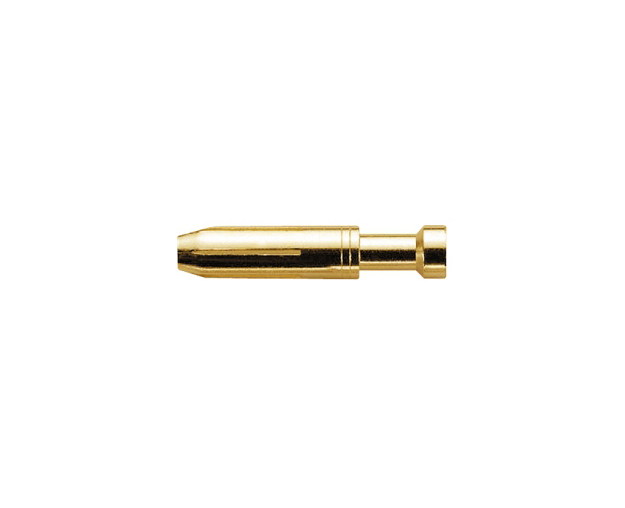

DEF-0.37
Type：Plugin-16A Crimp contacts
Model：DEF-0.37
Num：2030012002
Part：Pin
Introduction：16A cold crimp pin, gold plated (for HAC, HEC, HEE, HM, HK ferrule)
Download：
DEF-0.37
Detail
| Technical Parameters | |
| Material | Copper alloy |
| Surface treatment |
Gold plating |
| Contact resistance | ≤1mΩ |
| Wire gauge | |
| －mm2 | 0.14-0.37mm2 |
| －AWG | 26-22 |
| Stripping length | 7.5mm |
