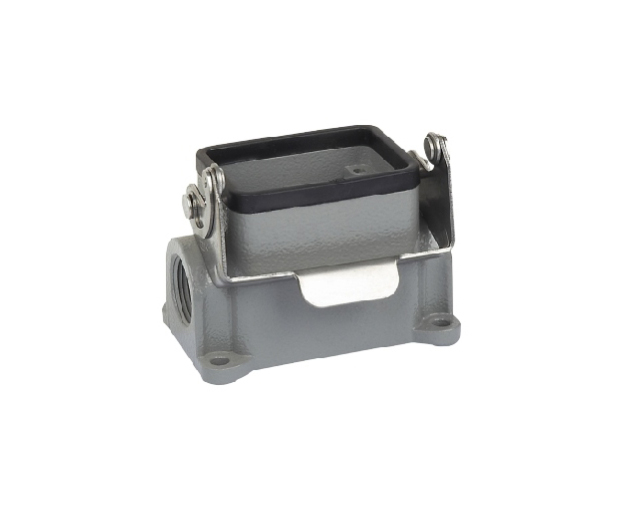

H6B-SGR-LB-2M20
Type：shell-H6B housing (IP65)
Model：H6B-SGR-LB-2M20
Num：1610060220
Part：Lower housing
Introduction：H6B metal shell; common structure; surface mounting; single button; 2 incoming line; M20
Download：
H6B-SGR-LB-2M20
Detail
| Material |
Cast aluminum |
| Colour | gray |
| Interlocking element | |
| ---Interlocking method | Metal elastic pressing |
| ---material | stainless steel+TPR |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP65 |
