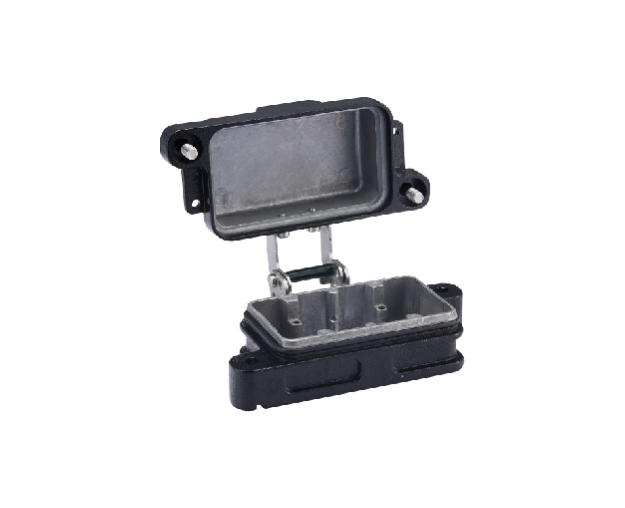

H6BPR-AGS
Type：shell-H6B housing (IP68)
Model：H6BPR-AGS
Num：1931060000
Part：Lower housing
Introduction：HP6B high protection housing; open hole mounting; axle pin interlock
Download：
H6BPR-AGS
Detail
| Material | Cast aluminum alloy |
| Colour | black |
| Interlocking element | |
| ---Interlocking method |
Axle pin interlock |
| ---material | stainless steel |
| Sealing element | NBR |
| Applicable temperature range | -40℃...+125℃ |
| Flammability rating | V0 |
| Protection level | IP68/IP69K |
